SJ with plate
The concrete base is equipped with a stainless steel adjusting and set screw mechanism. The conical shape and wide bottom of the base ensure optimal DL3 values.
MATERIALS
Explore our products
Sähkö-Jokinen's mission is to improve road user safety. We have achieved this goal by manufacturing first-class outdoor lighting products for our customers' needs.
Behind our products lies groundbreaking design and the utilisation of the latest technical solutions. At the same time, we have also become one of the industry's forerunners.
SJ with plate
The concrete base is equipped with a stainless steel adjusting and set screw mechanism. The conical shape and wide bottom of the base ensure optimal DL3 values.
MATERIALS

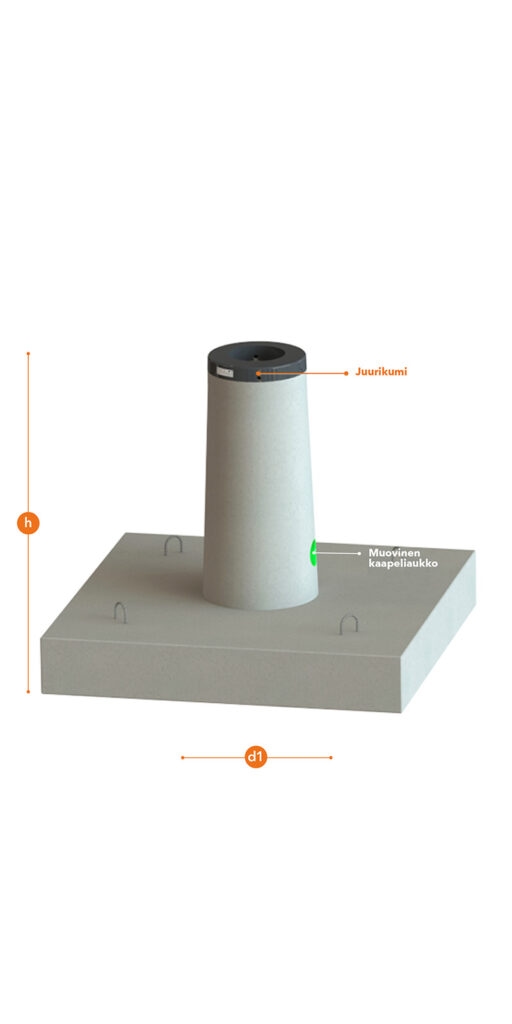

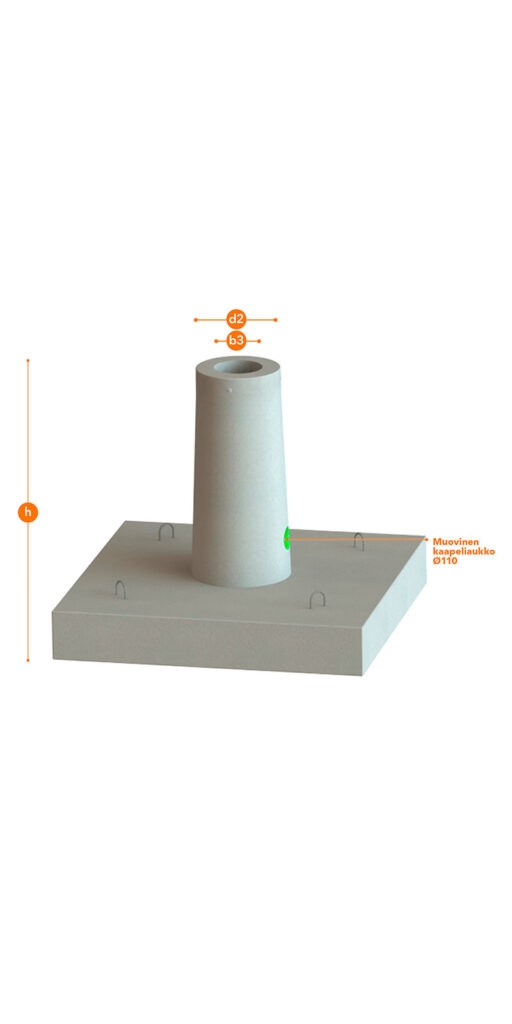

SJ bases with a plate
| Type | Pole diam. mm | Pole height m | h mm ± 20 | d 1 mm | d 2 mm | u mm ± 10 | u 1 mm | b 1 mm | b 2 mm ± 2 | b 3 mm ± 2 | Cable entry | Adj. screws | Weight kg | Plate p x l x k mm | Rubber prot. | Electr. no. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SJ-4a | 159-224 | 8-12 | 1300 | plate | 420 | 680 | 110 | 120 | 225 | 245 | yes* | 6xM16 | 1800 | 1550x1550x250 | JK-4 | 4607690 |
| SJ-4b | 159-224 | 8-15 | 1300 | plate | 420 | 680 | 110 | 120 | 225 | 245 | yes* | 6xM16 | 2200 | 1750x1750x250 | JK-4 | 4607693 |
| SJ-4c | 159-224 | 8-15 | 1300 | plate | 420 | 680 | 110 | 120 | 225 | 245 | yes* | 6xM16 | 2570 | 1900x1900x250 | JK-4 | 4607696 |
| SJ-5A/1800 | 215-282 | 12-16 | 1300 | plate | 520 | 730 | 140 | 120 | 285 | 300 | yes* | 6xM16 | 2000 | 1550x1550x250 | JK-5 | 4607602 |
| SJ-5A/2200 | 222-295 | 16-18 | 1300 | plate | 520 | 710 | 150 | 120 | 300 | 325 | yes* | 8xM16 | 2000 | 1550x1550x250 | JK-5 | 4607604 |
* Plastic
** Plastic, 90 mm
*** SJ-4/1100 with bedrock mounting. There are 10 anchor rods on the bottom of the base for casting the concrete base plate on site.
SJ bases with four cable entries
| Type | Pole diam. mm | Pole height mm | h mm ± 20 | d 1 mm | d 2 mm | u mm ± 10 | u 1 mm | b 1 mm | b 2 mm ± 2 | b 3 mm ± 2 | Cable entry | Adj. screws | Weight kg | Rubber prot. | dl³ | pcs / load | Electr. no. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SJ-1 /4KA | 100-136 | 1-6 | 1000 | 370 | 240 | 430 | 80 | 80 | 138 | 150 | yes* | 3xM16 | 130 | JK 0-1 | 0.22 | 8 | 4627711 |
| SJ-1.3/4KA | 100-143 | 5-8 | 1300 | 490 | 285 | 480 | 120 | 80 | 145 | 153 | yes* | 4xM16 | 250 | JK 0-1 | 0.60 | 6 | 4627712 |
| SJ-2/4KA | 128-168 | 6-10 | 1200 | 550 | 330 | 570 | 80 | 120 | 180 | 190 | yes* | 4xM16 | 290 | JK 2-3 | 0.53 | 4 | 4627713 |
| SJ-3/4KA | 128-168 | 6-10 | 1500 | 570 | 330 | 570 | 80 | 120 | 180 | 190 | yes* | 4xM16 | 380 | JK 2-3 | 1.23 | 4 | 4627714 |
| SJ-4/1500/4KA | 159-224 | 8-12 | 1500 | 620 | 420 | 690 | 110 | 120 | 225 | 245 | yes* | 6xM16 | 560 | JK-4 | 1.32 | 2 | 4627716 |
| SJ-4/1800/4KA | 159-224 | 8-15 | 1800 | 630 | 420 | 690 | 110 | 120 | 225 | 245 | yes* | 6xM16 | 680 | JK-4 | 2.40 | 2 | 4627717 |
| SJ-5/1800/4KA | 215-282 | 12-15 | 1800 | 780 | 520 | 730 | 140 | 120 | 285 | 300 | yes* | 6xM16 | 1015 | JK-5 | 3.0 | 1 | 4627719 |
| SJ-5/2200/4KA | 222-295 | 15-18 | 2150 | 780 | 520 | 710 | 150 | 120 | 300 | 325 | yes* | 8xM16 | 1300 | JK-5 | 5.9 | 1 | 4627720 |
* Plastic

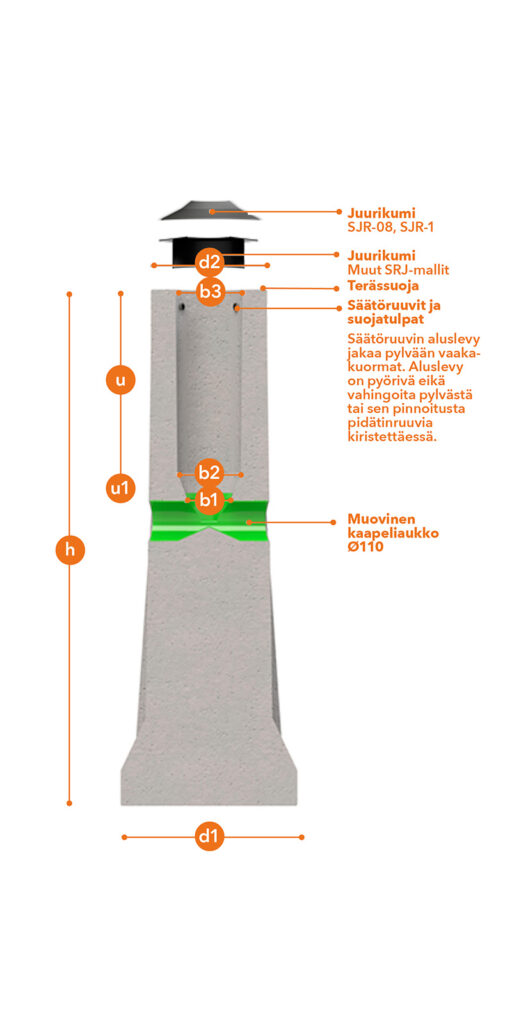

A base with adjusting screws for lighting poles, masts, traffic signs and traffic lights.
The concrete base is equipped with a stainless steel adjusting and set screw mechanism. The conical shape and wide bottom of the base ensure optimal DL3 values. The top of the base is protected with weatherproof plastic, which protects the concrete reinforcements.
The delivery includes a weatherproof EPDM rubber protector (special shaped in SJ model), which is installed on the top of the pole base. The rubber protector prevents water and rocks from getting inside the base. The rubber protector does not slide off the base as the lower part of the seal is pressed between the adjusting screw and the pole. The diameter of the plastic cable entries in the pole base is 110 mm. Pole bases may be supplied with two or four cable entries.
- All SJ-TER bases found on this page are equipped with a plastic cable entry.
- The plastic cable entry diameter in base models SJ-4/1100, SJ-4/2200, SJ-4a, SJ-4b and SJ-4c is 90 mm.
- We reserve the right to make changes to the technical specifications.
