Standard flange
When a pole can’t be installed onto a standard pole base, the it can be equipped with different types of standard flanges, and can be mounted using bolt cages or SJL pole bases.
Explore our products
Sähkö-Jokinen's mission is to improve road user safety. We have achieved this goal by manufacturing first-class outdoor lighting products for our customers' needs.
Behind our products lies groundbreaking design and the utilisation of the latest technical solutions. At the same time, we have also become one of the industry's forerunners.
Standard flange
When a pole can’t be installed onto a standard pole base, the it can be equipped with different types of standard flanges, and can be mounted using bolt cages or SJL pole bases.
Measurements
| Flande type |
|---|
| d2 outer diameter |
| d1 bolt ring |
| S thickness |
| Bolts pcs |
| K bolt angle |
| L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 |
|---|---|---|---|---|---|---|---|---|
| 260 | 325 | 420 | 420 | 500 | 560 | 620 | 700 | 800 |
| 200 | 250 | 325 | 325 | 400 | 450 | 500 | 550 | 650 |
| 20 | 25 | 25 | 32 | 40 | 40 | 40 | 40 | 50 |
| 4x M16 | 4x M20 | 4x M24 | 4x M24 | 6x M24 | 6x M30 | 8x M30 | 8x M36 | 8x M36 |
| 90˚ | 90˚ | 90˚ | 90˚ | 60˚ | 60˚ | 45˚ | 45˚ | 45˚ |

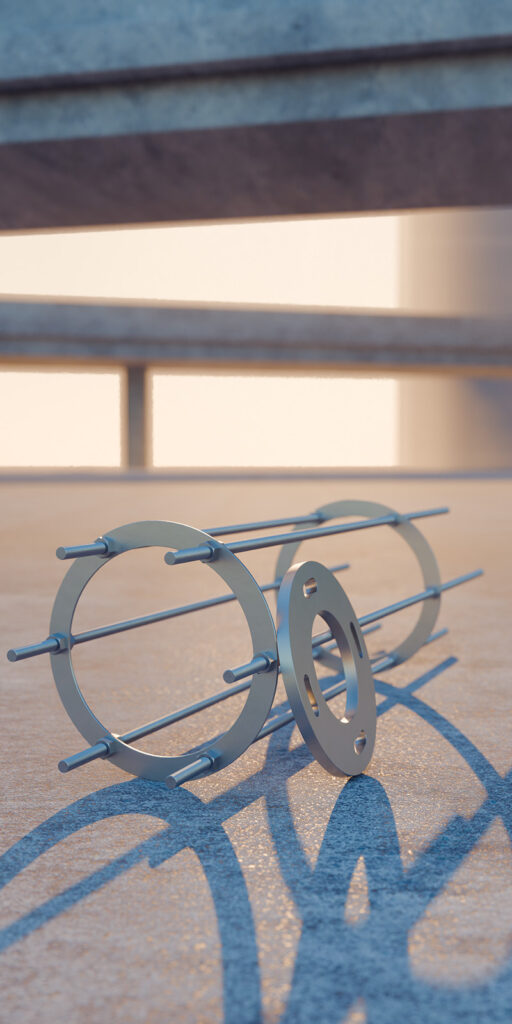

Standard flange & bolt cage
When a pole can’t be installed onto a standard pole base, the it can be equipped with different types of standard flanges, and can be mounted using bolt cages or SJL pole bases.
Bolt cages are supplied with threaded rods and nuts, and equipped with mounting plates to ensure accurate installation. We manufacture compatible flanges and bolt cages to order.
