Conical pole
The modern SJK conical poles are suitable for various environments and lighting purposes –from park, street and road lighting to district lighting.

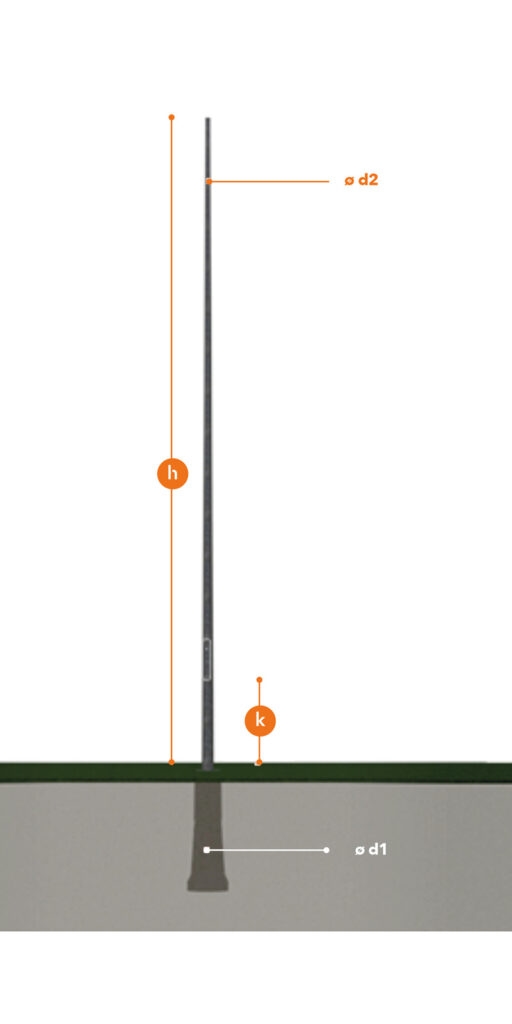

Straight conical poles
| Type | Height h / m | d 1 mm | d 2 mm | S mm | K mm | Hatch mm | Weight kg | Base | Electr. no. |
|---|---|---|---|---|---|---|---|---|---|
| A203SK | 3 | 109 | 60 | 3 | 500 | 75x400 | 23 | SJ-08, SJR-08 | 4627737 |
| A204SK | 4 | 110 | 60 | 3 | 500 | 75x400 | 30 | SJ-08, SJR-08 | 4627740 |
| A205SK | 5 | 121 | 60 | 3 | 500 | 85x400 | 38 | SJ-08, SJR-08 | 4627741 |
| A106SK | 6 | 132 | 60 | 3 | 600 | 85x400 | 48 | SJ-1, SJR-1 | 4627742 |
| B108SK | 8 | 156 | 60 | 3 | 950 | 85x400 | 67 | SJ-2, SJR-2 | 4627743 |
| B208SK | 8 | 172 | 76 | 3 | 950 | 85x400 | 81 | SJ-4/1500, SJR-4/1500 | 4627728 |
| B110SK | 10 | 178 | 60 | 3 | 950 | 85x400 | 102 | SJ-4/1500, SJR-4/1500 | 4627744 |
| B210SK | 10 | 194 | 76 | 3 | 950 | 85x400 | 112 | SJ-4/1500, SJR-4/1500 | 4627729 |
| B112SK | 12 | 211 | 60 | 3 | 950 | 85x400 | 147 | SJ-4/1500, SJR-4/1500 | 4627745 |
| B212SK | 12 | 227 | 76 | 3 | 950 | 100x400 | 152 | SJ-5/1800 | 4627730 |
| B312SK | 12 | 227 | 89 | 3 | 950 | 100x400 | 160 | SJ-5/1800 | 4627731 |

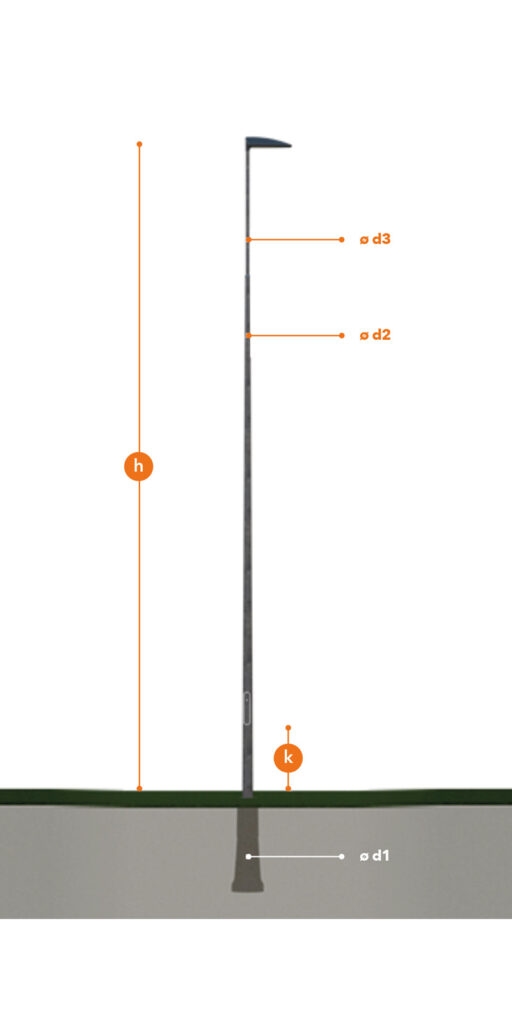

Straight conical poles with upright arm
| Type | Height h / m | d 1 mm | d 2 mm | d 3 mm | S mm | K mm | Hatch mm | Weight kg | Base | Electr. no. |
|---|---|---|---|---|---|---|---|---|---|---|
| S100B108K | 8 | 138 | 60 | 60 | 3 | 950 | 85x400 | 67 | SJ-1.3, SJR-1.3 | 4627747 |
| S100B110K | 10 | 161 | 60 | 60 | 3 | 950 | 85x400 | 86 | SJ-2, SJR-2 | 4627749 |
| S200B210K | 10 | 176 | 76 | 76 | 3 | 950 | 85x400 | 95 | SJ-4/1500, SJR-4/1500 | 4627751 |
| S200B112K | 12 | 200 | 76 | 76 | 3 | 950 | 85x400 | 125 | SJ-4/1500, SJR-4/1500 | 4627752 |
| S200C212K | 12 | 222 | 89 | 89 | 3 | 950 | 85x400 | 153 | SJ-4/1500, SJR-4/1500 | 4627753 |
| S200C312K | 12 | 222 | 89 | 89 | 4 | 950 | 85x400 | 197 | SJ-4/1800, SJR-4/1800 | 4627754 |

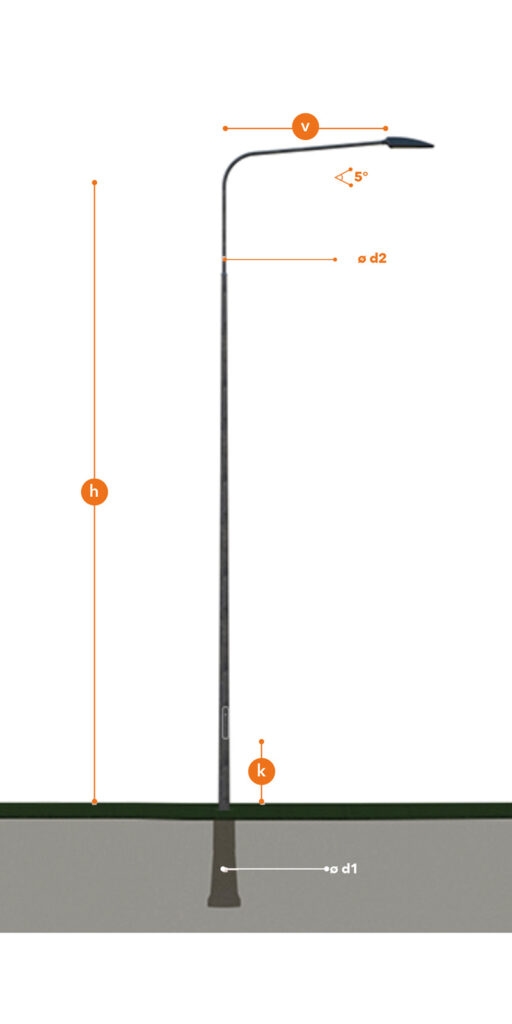

Single-arm conical poles
| Type | Height h / m | V m | d 1 mm | d 2 mm | d 3 mm | S mm | K mm | Hatch mm | Weight kg | Base | Electr. no. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P110B108K | 8 | 1 | 138 | 60 | 60 | 3 | 950 | 85x400 | 70 | SJ-1.3, SJR-1.3 | 4627738 |
| P115B108K | 8 | 1,5 | 138 | 60 | 60 | 3 | 950 | 85x400 | 72 | SJ-1.3, SJR-1.3 | 4627739 |
| P125B108K | 8 | 2,5 | 138 | 60 | 60 | 3 | 950 | 85x400 | 76 | SJ-2, SJR-2 | 4627748 |
| P210B208K | 8 | 1 | 154 | 76 | 76 | 3 | 950 | 85x400 | 83 | SJ-2, SJR-2 | 4627746 |
| P110B110K | 10 | 1 | 161 | 60 | 60 | 3 | 950 | 85x400 | 89 | SJ-2, SJR-2 | 4627750 |
| P115B110K | 10 | 1,5 | 161 | 60 | 60 | 3 | 950 | 85x400 | 91 | SJ-2, SJR-2 | 4627755 |
| P120B110K | 10 | 2 | 161 | 60 | 0 | 3 | 950 | 85x400 | 93 | SJ-3, SJR-3 | 4627774 |
| P125B110K | 10 | 2,5 | 161 | 60 | 60 | 3 | 950 | 85x400 | 95 | SJ-3, SJR-3 | 4627757 |
| P210B210K | 10 | 1 | 176 | 76 | 76 | 3 | 950 | 85x400 | 108 | SJ-4/1500, SJR-4/1500 | 4627756 |
| P225B210K | 10 | 2,5 | 176 | 76 | 76 | 3 | 950 | 85x400 | 118 | SJ-4/1500, SJR-4/1500 | 4627758 |
| P210B112K | 12 | 1 | 200 | 76 | 76 | 3 | 950 | 85x400 | 140 | SJ-4/1800, SJR-4/1800 | 4627759 |
| P215B112K | 12 | 1,5 | 200 | 76 | 76 | 3 | 950 | 85x400 | 144 | SJ-4/1800, SJR-4/1800 | 4627760 |
| P225B112K | 12 | 2,5 | 200 | 76 | 76 | 3 | 950 | 85x400 | 150 | SJ-4/1800, SJR-4/1800 | 4627761 |
| P225C212K | 12 | 2,5 | 222 | 89 | 89 | 3 | 950 | 100x400 | 166 | SJ-4/1800, SJR-4/1800 | 4627762 |
| P240C212K | 12 | 4 | 222 | 89 | 89 | 3 | 950 | 100x400 | 179 | SJ-4/1800, SJR-4/1800 | 4627763 |
| P240C312K | 12 | 4 | 222 | 89 | 89 | 4 | 950 | 100x400 | 223 | SJ-4/1800, SJR-4/1800 | 4627764 |

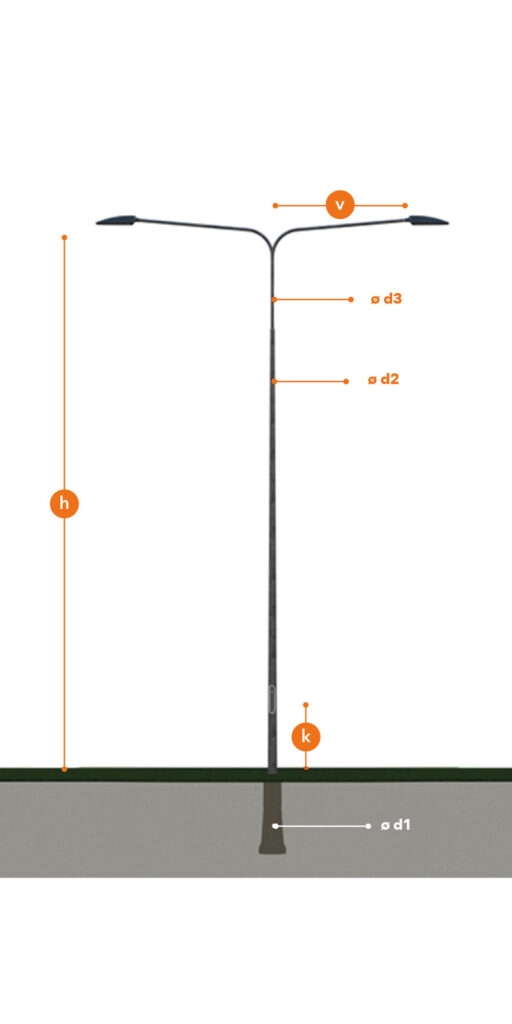

Double-arm conical poles
| Type | Height h / m | V m | d 1 mm | d 2 mm | d 3 mm | S mm | K mm | Hatch mm | Weight kg | Base | Electr. no. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T110B108K | 8 | 1 | 138 | 60 | 60 | 3 | 950 | 85x400 | 76 | SJ-1.3, SJR-1.3 | 4627765 |
| T115B108K | 8 | 1,5 | 138 | 60 | 60 | 3 | 950 | 85x400 | 80 | SJ-1.3, SJR-1.3 | 4627766 |
| T210B208K | 8 | 1 | 154 | 76 | 76 | 3 | 950 | 85x400 | 93 | SJ-2, SJR-2 | 4627767 |
| T110B110K | 10 | 1 | 161 | 60 | 60 | 3 | 950 | 85x400 | 95 | SJ-2, SJR-2 | 4627768 |
| T115B110K | 10 | 1,5 | 161 | 60 | 60 | 3 | 950 | 85x400 | 99 | SJ-2, SJR-2 | 4627769 |
| T120B110K | 10 | 2 | 161 | 60 | 60 | 3 | 950 | 85x400 | 103 | SJ-3, SJR-3 | 4627775 |
| T210B210K | 10 | 1 | 176 | 76 | 76 | 3 | 950 | 85x400 | 118 | SJ-4/1500, SJR-4/1500 | 4627770 |
| T225B210K | 10 | 2,5 | 176 | 76 | 76 | 3 | 950 | 85x400 | 138 | SJ-4/1500, SJR-4/1500 | 4627771 |
| T325B310K | 10 | 2,5 | 189 | 89 | 89 | 3 | 950 | 85x400 | 157 | SJ-4/1500, SJR-4/1500 | 4627772 |
| T210B112K | 12 | 1 | 200 | 76 | 76 | 3 | 950 | 85x400 | 150 | SJ-4/1800, SJR-4/1800 | 4627773 |
| T310B212K | 12 | 1 | 222 | 89 | 89 | 3 | 950 | 100x400 | 165 | SJ-4/1800, SJR-4/1800 | 4627732 |
| T325B212K | 12 | 2,5 | 222 | 89 | 89 | 3 | 950 | 100x400 | 186 | SJ-4/1800, SJR-4/1800 | 4627733 |
| T225C312K | 12 | 2,5 | 222 | 89 | 89 | 4 | 950 | 100x400 | 230 | SJ-5/1800 | 4627734 |
| T240C212K | 12 | 4 | 222 | 89 | 89 | 3 | 950 | 100x400 | 207 | SJ-5/1800 | 4627735 |
| T140C312K | 12 | 4 | 222 | 89 | 89 | 4 | 950 | 100x400 | 251 | SJ-5/1800 | 4627736 |

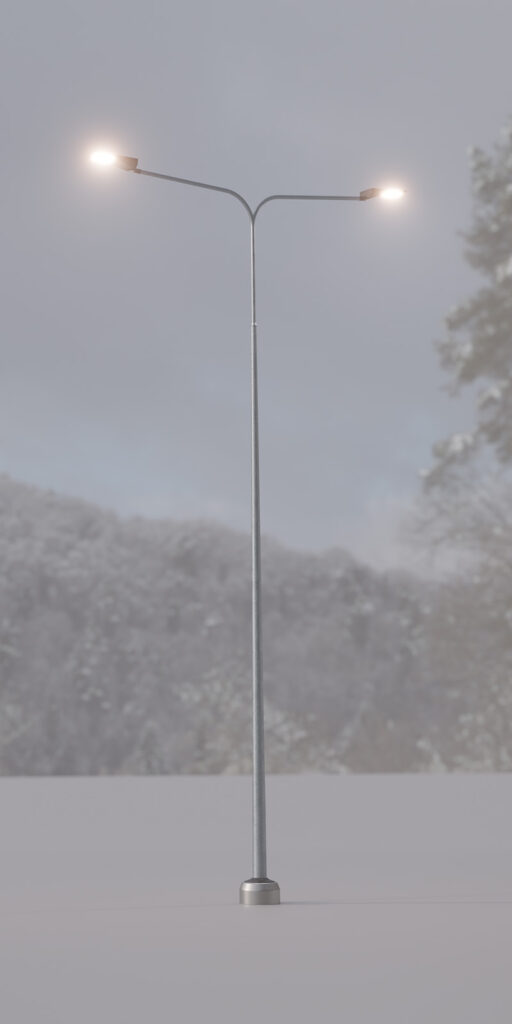

SJK conical steel lighting poles for various applications
The modern SJK conical poles are suitable for various environments and lighting purposes –from park, street and road lighting to district lighting. A laser welded structure provides the pole a seamless surface and a high-quality and finished design. The poles are made of hot-dip galvanised steel which, combined with the seamless structure, creates an optimal surface for painting. Standard poles are equipped with a built-in service door, providing a streamlined design and protection against vandalism.
Poles may also be equipped with a surface-mounted service door. If you are looking for a more unique design, we also offer a variety of decorative pole brackets.
Features
- The poles are suitable for all light fittings.
- Hot-dip galvanised conical steel pole.
- Complies with standards:
- EN 40-5
- EN ISO 1461
- CE-certified.
- We reserve the right to make changes to the technical specifications.
