SJP wooden pole
Our selection now also includes durable and collision-safe wooden poles
Durable wooden poles, concrete base installation
| Type | Standard | Total height |
|---|---|---|
| Wooden pole Ha 6m | 208 8/15 | 8m |
| Wooden pole Ha 8m | 210 2/3 | 10m |
| Wooden pole Ha 9m | 211 11/15 | 11m |
| Wooden pole Ha 10m | 212 4/5 | 12m |
| Wooden pole Ha 11m | 213 13/15 | 13m |
| Wooden pole Ha 12m | 214 14/15 | 14m |
| Wooden pole Ha 13m | 216 | 15m |
Collision-safe wooden poles for overhead cables, ground installation
| Type | Standard | Total height |
|---|---|---|
| Wooden pole Ha 10m Turva for overhead cables | 212T | 12m |
| Wooden pole Ha 12m Turva for overhead cables | 214T | 14m |
Standard wooden poles, concrete base installation
| Type | Standard | Total height | Base |
|---|---|---|---|
| Wooden pole Ha 6m | 207 7/15 | 7m | SJP-4/1500 |
| Wooden pole Ha 8m | 209 8/15 | 9m | SJP-4/1500 |
| Wooden pole Ha 9m | 210 9/15 | 10m | SJP-4/1500 |
| Wooden pole Ha 10m | 211 10/15 | 11m | SJP-4/1800, SJP-5/1800 |
| Wooden pole Ha 11m | 212 11/15 | 12m | SJP-5/1800 |
| Wooden pole Ha 12m | 213 12/15 | 13m | SJP-5/1800 |
Collision-safe wooden poles for underground cables, concrete base installation
| Type | Standard | Total height | Base |
|---|---|---|---|
| Wooden pole Ha 8m Turva for underground cables | 8TS | 9m | SJP-4/1500 |
| Wooden pole Ha 9m Turva for underground cables | 9TS | 10m | SJP-4/1500 |
| Wooden pole Ha 10m Turva for underground cables | 10TS | 11m | SJP-4/1500, SJP-5/1800 |
| Wooden pole Ha 11m Turva for underground cables | 11TS | 12m | SJP-5/1800 |
| Wooden pole Ha 12m Turva for underground cables | 12TS | 13m | SJP-5/1800 |
Collision-safe wooden poles for overhead cables, concrete base installation
| Type | Standard | Total height | Base |
|---|---|---|---|
| Wooden pole Ha 8m Turva for overhead cables | 8T | 9m | SJP-4/1500 |
| Wooden pole Ha 9m Turva for overhead cables | 9T | 10m | SJP-4/1500 |
| Wooden pole Ha 10m Turva for overhead cables | 10T | 11m | SJP-4/1800, SJP-5 |
| Wooden pole Ha 11m Turva for overhead cables | 11T | 12m | SJP-5/1800 |
| Wooden pole Ha 12m Turva for overhead cables | 12T | 13m | SJP-5/1800 |
Wooden pole brackets

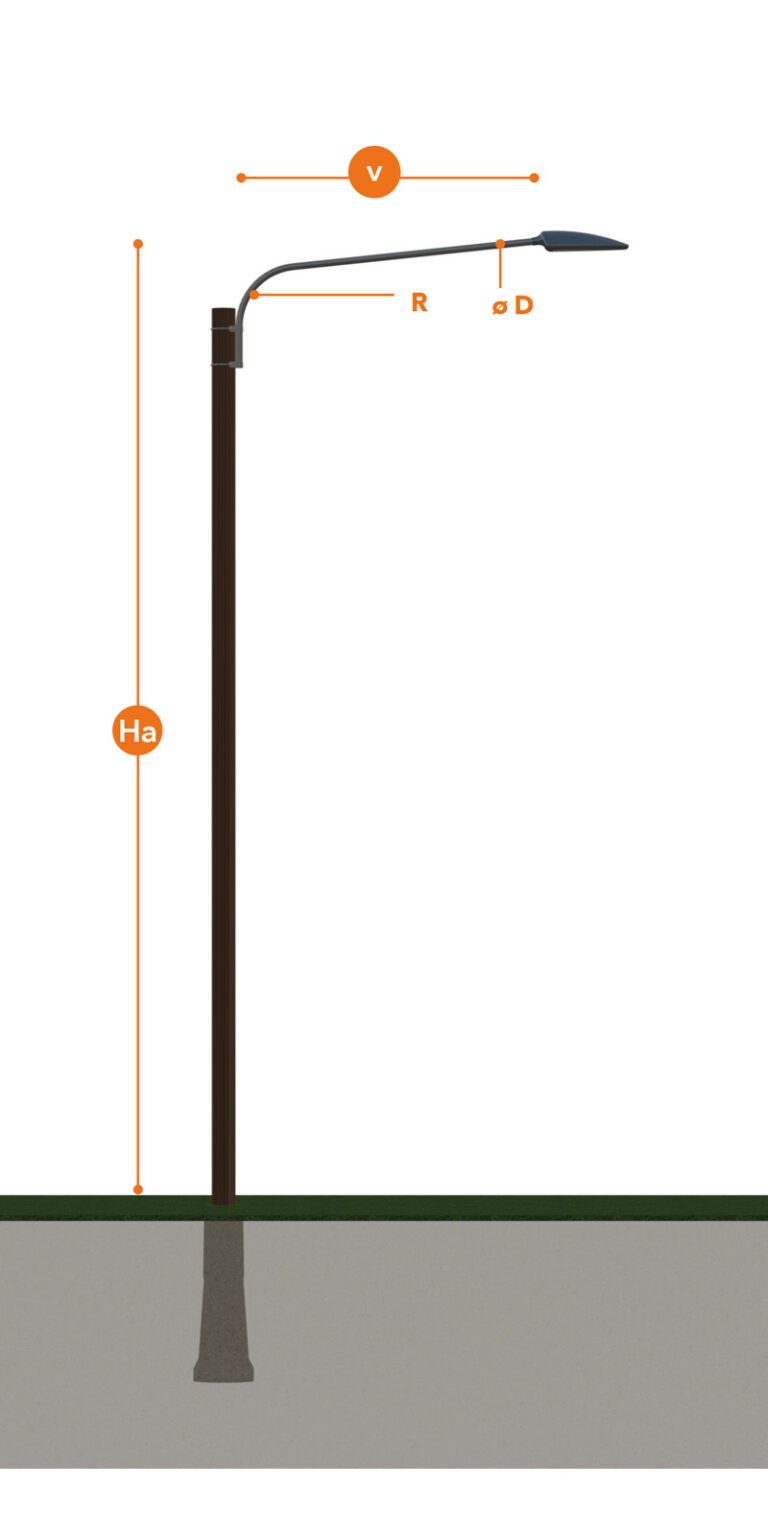

| Type | V m | d 1 mm | S mm | R mm | Weight kg | Electr. no. |
|---|---|---|---|---|---|---|
| Wooden pole bracket 5TV30 | 500 | 60 | 3 | 180 | 6 | 4627799 |
| Wooden pole bracket 10TV30 | 1000 | 60 | 3 | 500 | 8 | 4627800 |
| Wooden pole bracket 15TV30 | 1500 | 60 | 3 | 500 | 11 | 4627801 |
| Wooden pole bracket 20TV15 | 2000 | 60 | 3 | 500 | 13 | 4627802 |
| Wooden pole bracket 25TV15 | 2500 | 60 | 3 | 500 | 15 | 4627803 |
| Wooden pole bracket 25TV30 | 2500 | 76 | 3 | 630 | 18 | 4627804 |
Our selection now also includes durable and collision-safe wooden poles
In these safety poles, energy absorption has been achieved by hollowing out the inside of the lower part of the pole, the most likely point of impact. At the same time, the hollow space leaves room for the fuse and cables, so there is no need for a separate power box. You may also choose a pole model that contains a hollow space only for electrical wiring. You may choose between an aerial or underground cable model. The wooden poles can be mounted to SJP wooden pole bases, and they have been finished with turnings to guarantee optimal compatibility.
Adding a concrete SJP base significantly increases the reliability of the safety pole. The concrete base prevents the pole from rotting and extends its service life. According to the most recent instructions provided by the Finnish Transport Agency, wooden poles should no longer be installed directly in the ground without a base.

KAPU – for road safety

Light, safety & longevity
