KAPU®-NE
Non-energy-absorbing lighting pole compliant with EN 12767
MATERIALS

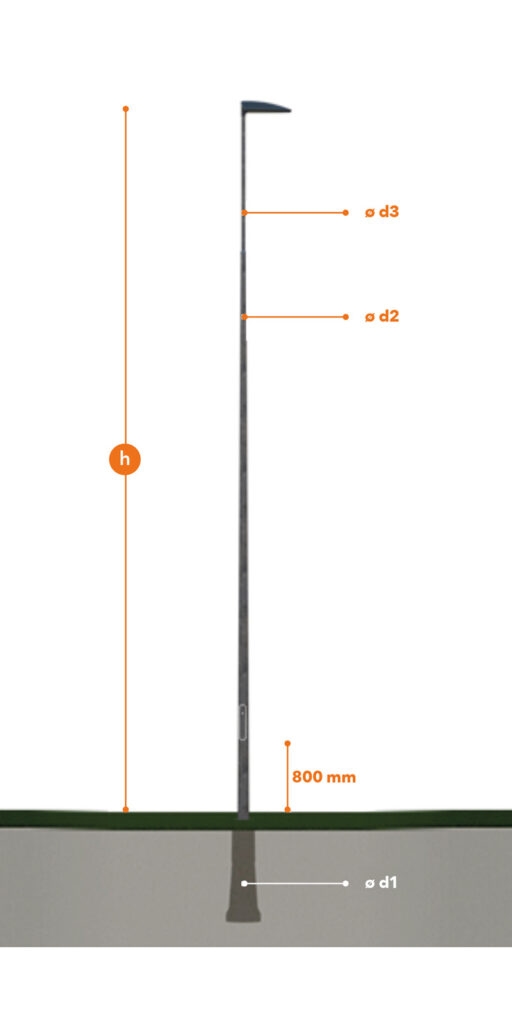

Straight poles
| Type | Height h / m | V m | d 1 mm | d 2 mm | d 3 mm | Weight kg | Base | Electr. no. |
|---|---|---|---|---|---|---|---|---|
| KAPU-NE 4 S 60 | 4 | – | 135 | 84 | 60 | 40 | SJR-1.3 | 4627833 |
| KAPU-NE 5 S 60 | 5 | – | 135 | 84 | 60 | 43 | SJR-1.3 | 4627834 |
| KAPU-NE 6 S 60 | 6 | – | 135 | 84 | 60 | 48 | SJR-1.3 | 4607766 |
| KAPU-NE 7 S 60 | 7 | – | 157 | 84 | 60 | 55 | SJR-2 | 4627835 |
| KAPU-NE 8 S 60 | 8 | – | 157 | 84 | 60 | 55 | SJR-2 | 4607768 |
| KAPU-NE 9 S 60 | 9 | – | 181 | 84 | 60 | 83 | SJR-4/1500 | 4627836 |
| KAPU-NE 10 S 60 | 10 | – | 181 | 84 | 60 | 88 | SJR-4/1500 | 4607770 |
| KAPU-NE 11 S 60 | 11 | – | 202 | 84 | 60 | 97 | SJR-4/1500 | 4627837 |
| KAPU-NE 12 S 60 | 12 | – | 202 | 84 | 60 | 102 | SJR-4/1500 | 4607772 |
| KAPU-NE 12 S 76 | 12 | – | 218 | 100 | 76 | 123 | SJR-4/1500 | 4627838 |
| KAPU-NE 13 S 76 | 13 | – | 218 | 100 | 76 | 131 | SJR-4/1800 | 4627839 |
| KAPU-NE 14 S 76 | 14 | – | 218 | 100 | 76 | 139 | SJR-4/1800 | 4627840 |
| KAPU-NE 15 S 76 | 15 | – | 218 | 100 | 76 | 148 | SJ-5/1800 | 4607775 |

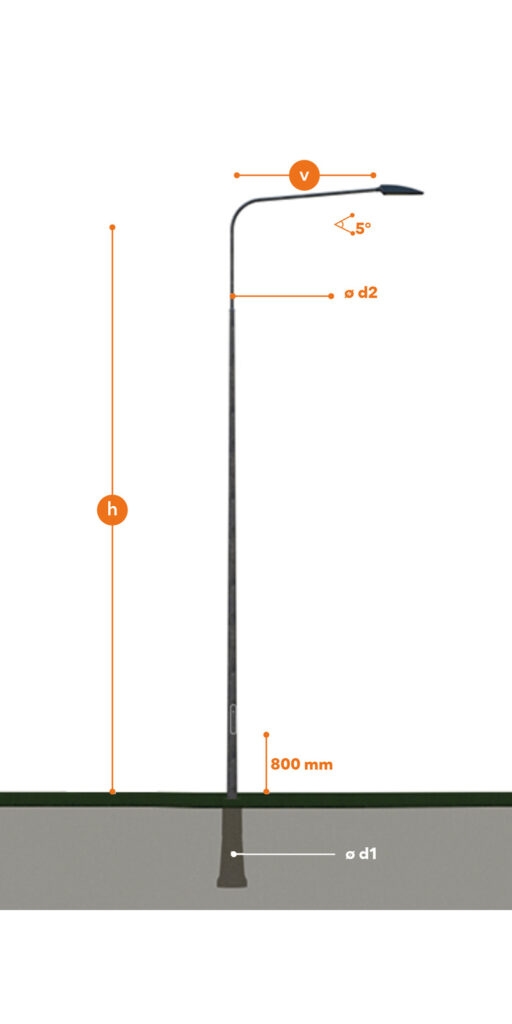

Single-arm poles
| Type | Height h / m | V m | d 1 mm | d 2 mm | d 3 mm | Weight kg | Base | Electr. no. |
|---|---|---|---|---|---|---|---|---|
| KAPU-NE 8 P 60 10 | 8 | 1 | 157 | 84 | 60 | 58 | SJR-2 | 4607778 |
| KAPU-NE 8 P 60 15 | 8 | 1,5 | 157 | 84 | 60 | 60 | SJR-2 | 4627841 |
| KAPU-NE 8 P 60 20 | 8 | 2 | 157 | 84 | 60 | 63 | SJR-2 | 4627842 |
| KAPU-NE 8 P 60 25 | 8 | 2,5 | 157 | 84 | 60 | 65 | SJR-2 | 4627843 |
| KAPU-NE 10 P 60 10 | 10 | 1 | 181 | 84 | 60 | 91 | SJR-4/1500 | 4607780 |
| KAPU-NE 10 P 60 15 | 10 | 1,5 | 181 | 84 | 60 | 94 | SJR-4/1500 | 4627844 |
| KAPU-NE 10 P 60 20 | 10 | 2 | 181 | 84 | 60 | 97 | SJR-4/1500 | 4627845 |
| KAPU-NE 10 P 60 25 | 10 | 2,5 | 181 | 84 | 60 | 99 | SJR-4/1500 | 4607782 |
| KAPU-NE 10 P 76 40 | 10 | 4 | 196 | 100 | 76 | 119 | SJR-4/1800 | 4627846 |
| KAPU-NE 12 P 60 10 | 12 | 1 | 202 | 84 | 60 | 107 | SJR-4/1800 | 4607784 |
| KAPU-NE 12 P 60 15 | 12 | 1,5 | 202 | 84 | 60 | 109 | SJR-4/1800 | 4627847 |
| KAPU-NE 12 P 60 20 | 12 | 2 | 202 | 84 | 60 | 112 | SJR-4/1800 | 4627848 |
| KAPU-NE 12 P 60 25 | 12 | 2,5 | 202 | 84 | 60 | 114 | SJR-4/1800 | 4607786 |
| KAPU-NE 12 P 76 40 | 12 | 4 | 218 | 100 | 76 | 140 | SJ-5/1800 | 4627849 |

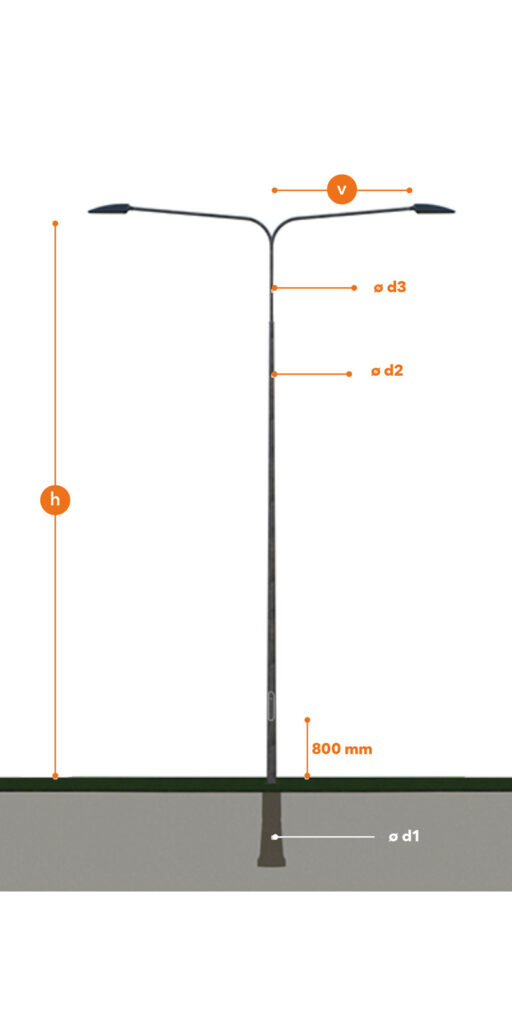

Double-arm poles
| Type | Height h / m | V m | d 1 mm | d 2 mm | d 3 mm | Weight kg | Base | Electr. no. |
|---|---|---|---|---|---|---|---|---|
| KAPU-NE 8 T 60 10 | 8 | 1 | 157 | 84 | 60 | 64 | SJR-2 | 4627850 |
| KAPU-NE 8 T 60 15 | 8 | 1,5 | 157 | 84 | 60 | 69 | SJR-2 | 4627851 |
| KAPU-NE 8 T 60 20 | 8 | 2 | 157 | 84 | 60 | 73 | SJR-2 | 4627852 |
| KAPU-NE 8 T 60 25 | 8 | 2,5 | 157 | 84 | 60 | 77 | SJR-2 | 4627853 |
| KAPU-NE 10 T 60 10 | 10 | 1 | 181 | 84 | 60 | 97 | SJR-4/1500 | 4607790 |
| KAPU-NE 10 T 60 15 | 10 | 1,5 | 181 | 84 | 60 | 102 | SJR-4/1500 | 4627854 |
| KAPU-NE 10 T 60 20 | 10 | 2 | 181 | 84 | 60 | 106 | SJR-4/1500 | 4627855 |
| KAPU-NE 10 T 60 25 | 10 | 2,5 | 181 | 84 | 60 | 110 | SJR-4/1500 | 4607792 |
| KAPU-NE 10 T 76 40 | 10 | 4 | 196 | 100 | 76 | 154 | SJR-4/1800 | 4627898 |
| KAPU-NE 12 T 60 10 | 12 | 1 | 202 | 84 | 60 | 117 | SJR-4/1800 | 4607794 |
| KAPU-NE 12 T 60 15 | 12 | 1,5 | 202 | 84 | 60 | 119 | SJR-4/1800 | 4627856 |
| KAPU-NE 12 T 60 20 | 12 | 2 | 202 | 84 | 60 | 124 | SJR-4/1800 | 4627857 |
| KAPU-NE 12 T 60 25 | 12 | 2,5 | 202 | 84 | 60 | 129 | SJR-4/1800 | 4607796 |
| KAPU-NE 12 T 76 40 | 15 | 0,2 | 218 | 100 | 76 | 148 | SJ-5/1800 | 4627899 |
| KAPU-NE 15 T 76 02 | 15 | 0,2 | 218 | 100 | 76 | 148 | SJ-5/1800 | 4607601 |
Non-energy-absorbing lighting pole
The non-energy absorbing KAPU®-NE poles give way to a vehicle in the event of a collision. The Finnish Transport Agency recommends using the KAPU®-NE poles on busy roads where there is no pedestrian or bicycle way or trees behind the poles. If there is a risk of a vehicle hitting a pedestrian or a tree after the pole, KAPU®-HE columns should be used.
The height of the EN 12767-compliant and CE-certified poles vary from 4 to 15 metres. The poles can also be mounted on bridges. the structure complies with the requirements of the safety category NE100,2.
- All poles have a minimum pole top diameter of 60 mm.
- Hot-dip galvanised conical steel pole.
- Complies with standards:
- EN 12767:2007
- EN 40-5
- EN ISO 1461
- CE-certified
- We reserve the right to make changes to the technical specifications.
