SJL
A concrete base for flanged masts and portals
MATERIALS
Explore our products
Sähkö-Jokinen's mission is to improve road user safety. We have achieved this goal by manufacturing first-class outdoor lighting products for our customers' needs.
Behind our products lies groundbreaking design and the utilisation of the latest technical solutions. At the same time, we have also become one of the industry's forerunners.
SJL
A concrete base for flanged masts and portals
MATERIALS
SJL bases
| Type | Pole height m | ⌀ mm | h mm ± 30 | Cable entry | Weight kg | Standard flange no. | Plate lxwxh mm | Bolts | Electr. no. |
|---|---|---|---|---|---|---|---|---|---|
| SJL-4 | 10-14 | 600 | 2050 | 2x110 | 1400 | 1, 2, 3 tai 4 | ei | 4xM16, M20 tai M24 | 4607605 |
| SJL-5 | 15-18 | 600 | 2050 | 2x110 | 1400 | 5 tai 6 | ei | 6xM24 tai M30 | 4607607 |
| SJL-6 | 18-20 | 800 | 1850 | 2x110 | 2300 | 6 | ei | 6xM30 | 4607608 |
| SJL-5L | 15-18 | 600 | 1750 | 2x110 | 2900 | 5 tai 6 | 1750x1750x250 | 6xM24 tai M30 | 4607610 |
| SJL-6L | 18-20 | 800 | 2000 | 2x110 | 4100 | 6 | 1750x1750x250 | 6xM30 | 4607611 |
| SJL-7L | 20-22 | 800 | 2000 | 2x110 | 4100 | 7 | 1750x1750x250 | 8xM30 | 4607613 |
| SJL-8L | 22-25 | 800 | 2000 | 2x110 | 4400 | 8 | 1900x1900x250 | 8xM36 | 4607614 |
| SJL-9L | 22-25 | 980 | 2050 | 2x110 | 5400 | 9 | 1900x1900x250 | 8xM36 | 4627892 |
* 2×120
** 1×100

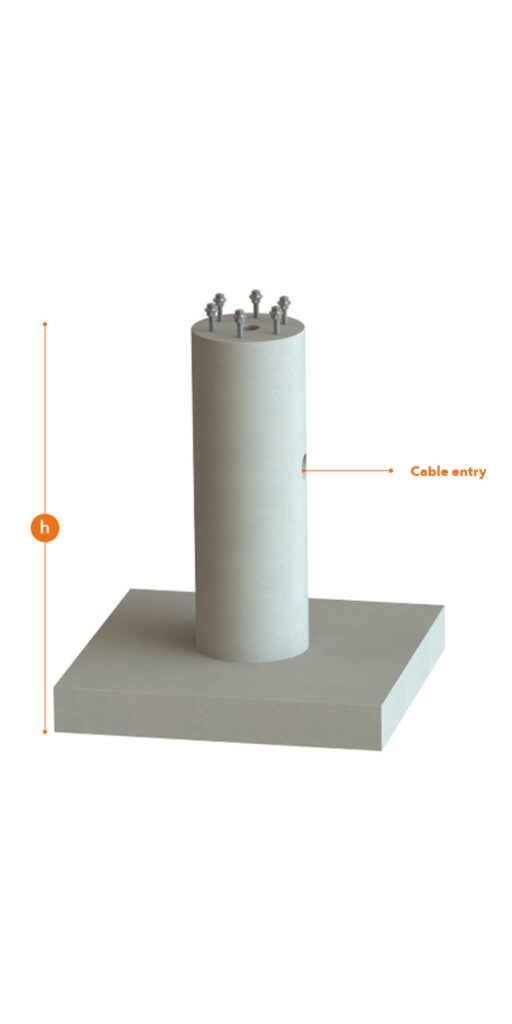

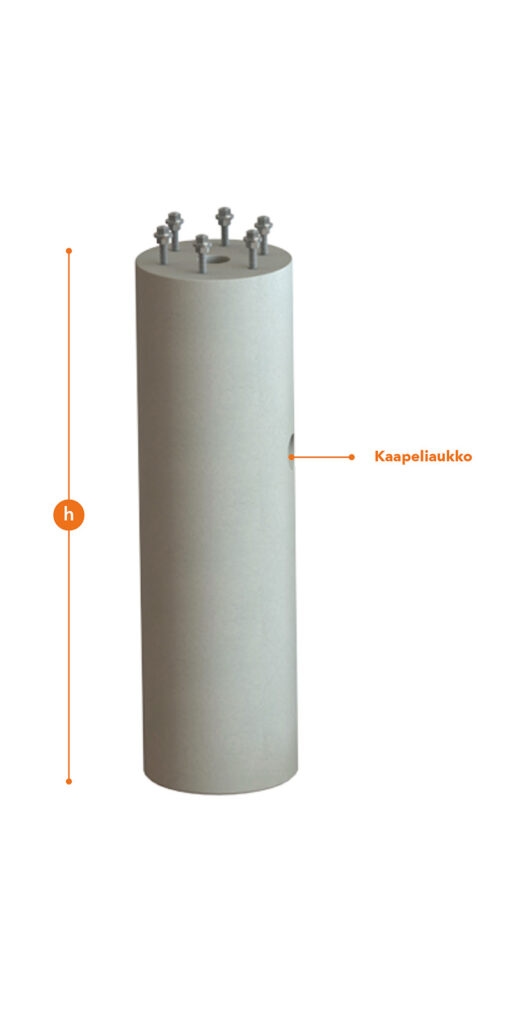

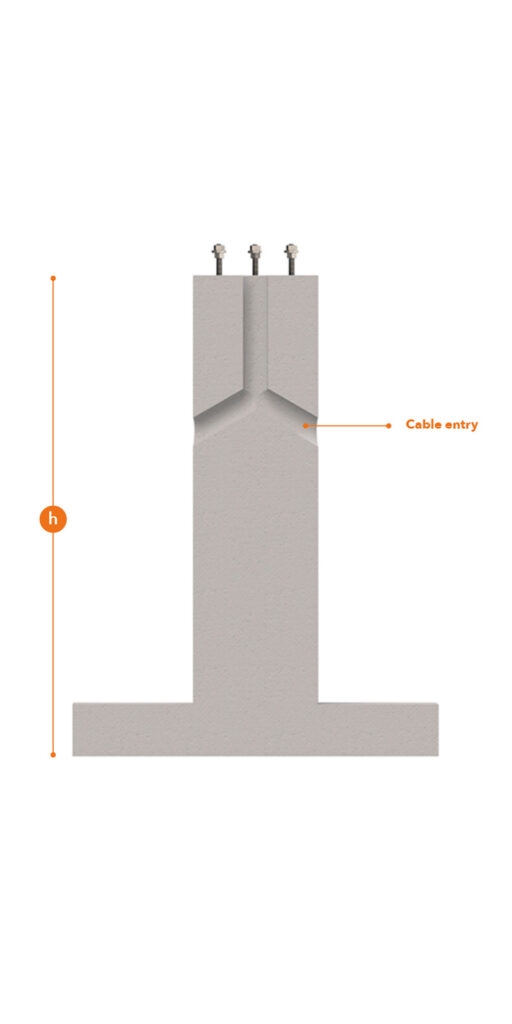

A concrete base for flanged masts and portals
SJL is a high-quality concrete base for flange-mounted light masts and portal towers. Bolt sizes, locations and quantities are determined by the size of the standard flange. We will also determine case-specifically whether the base requires a base plate.
The high-quality pole bases meet the new, general quality requirements set by the Finnish Transport Agency. The product is durable and easy to install. Our new automated production line and efficient production methods ensure consistency and accuracy.
- Steel B500 and A500HW
- Concrete K40 XF3 and all alloying elements CE-certified.
- FI Certification
- We reserve the right to make changes to the technical specifications.
