Standard flange
When a pole can’t be installed onto a standard pole base, the it can be equipped with different types of standard flanges, and can be mounted using bolt cages or SJL pole bases.

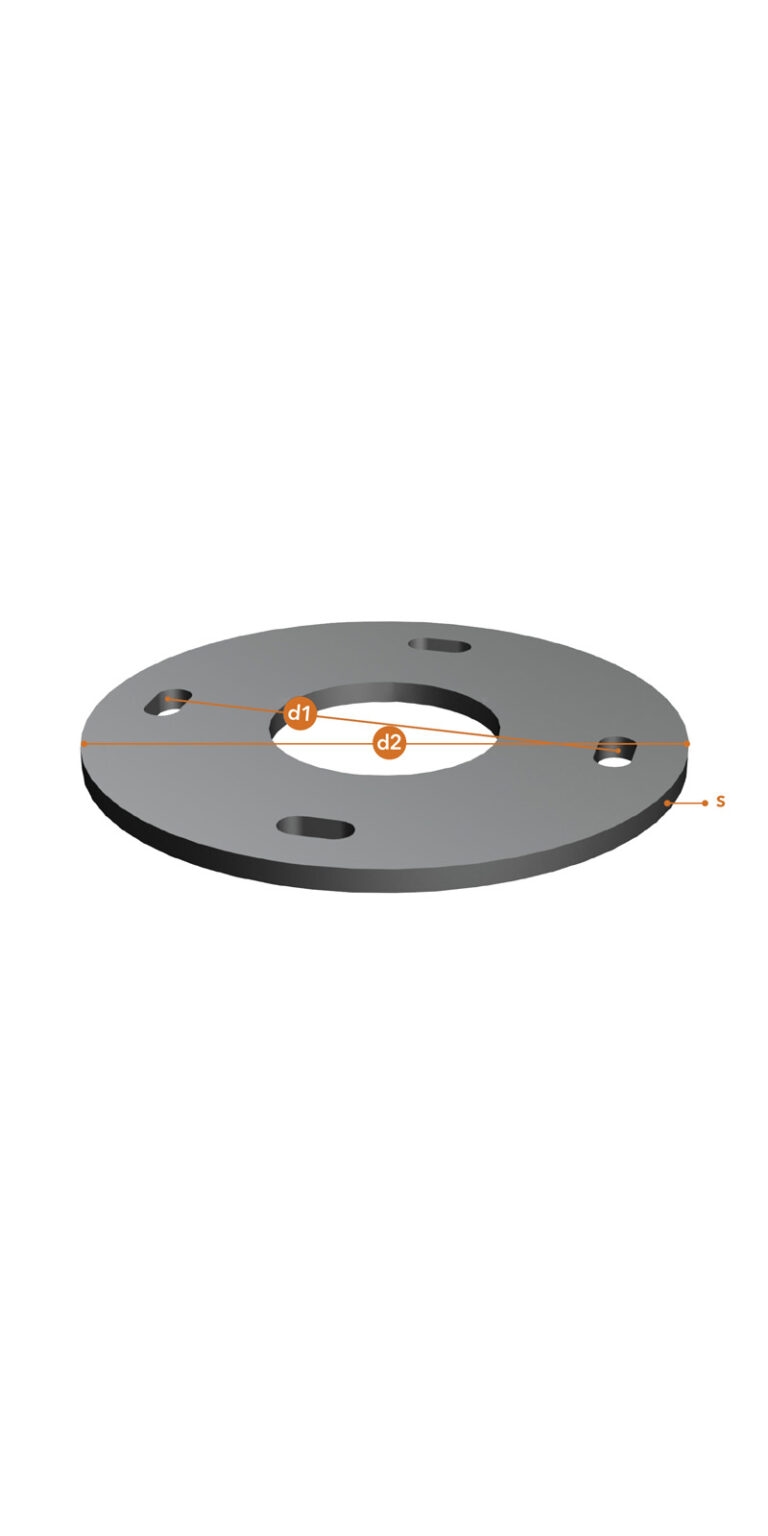

Measurements
| Flande type | d2 outer diameter | d1 bolt ring | S thickness | Bolts pcs | K bolt angle |
|---|---|---|---|---|---|
| L1 | 260 | 200 | 20 | 4x M16 | 90˚ |
| L2 | 325 | 250 | 25 | 4x M20 | 90˚ |
| L3 | 420 | 325 | 25 | 4x M24 | 90˚ |
| L4 | 420 | 325 | 32 | 4x M24 | 90˚ |
| L5 | 500 | 400 | 40 | 6x M24 | 60˚ |
| L6 | 560 | 450 | 40 | 6x M30 | 60˚ |
| L7 | 620 | 500 | 40 | 8x M30 | 45˚ |
| L8 | 700 | 550 | 40 | 8x M36 | 45˚ |
| L9 | 800 | 650 | 50 | 8x M36 | 45˚ |

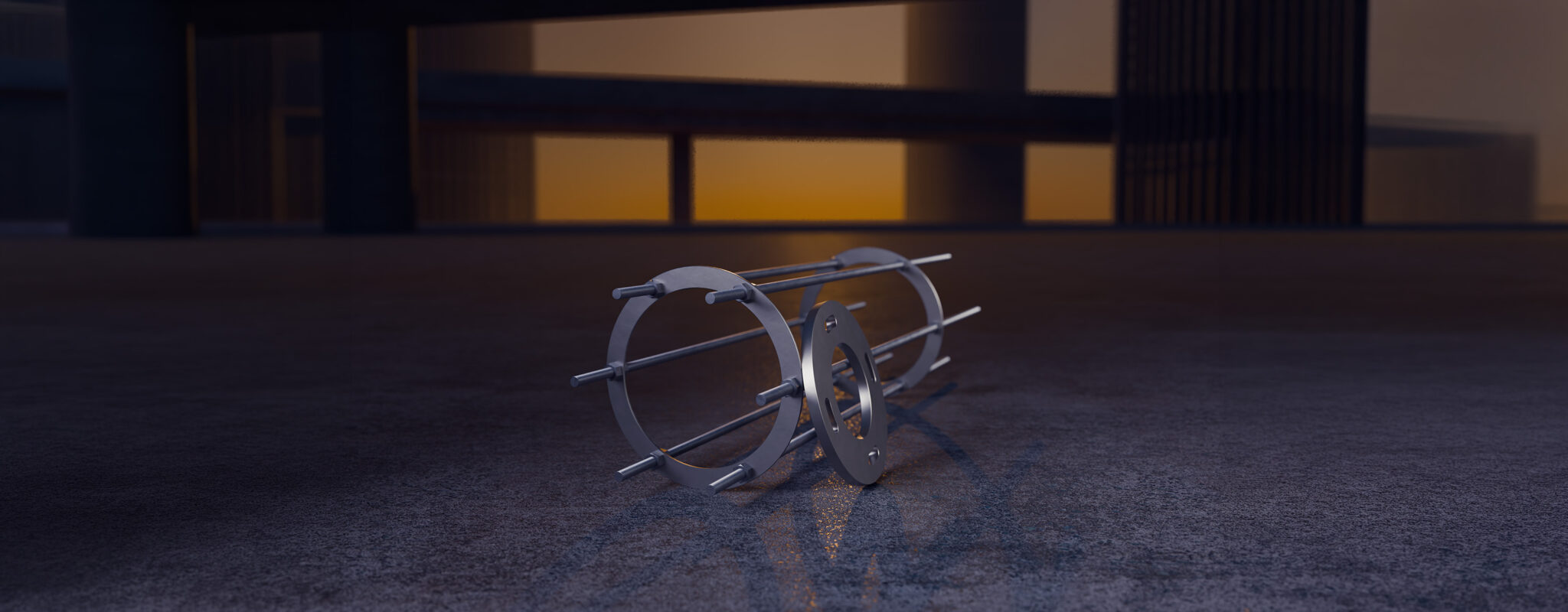

Standard flange & bolt cage
When a pole can’t be installed onto a standard pole base, the it can be equipped with different types of standard flanges, and can be mounted using bolt cages or SJL pole bases.
Bolt cages are supplied with threaded rods and nuts, and equipped with mounting plates to ensure accurate installation. We manufacture compatible flanges and bolt cages to order.
